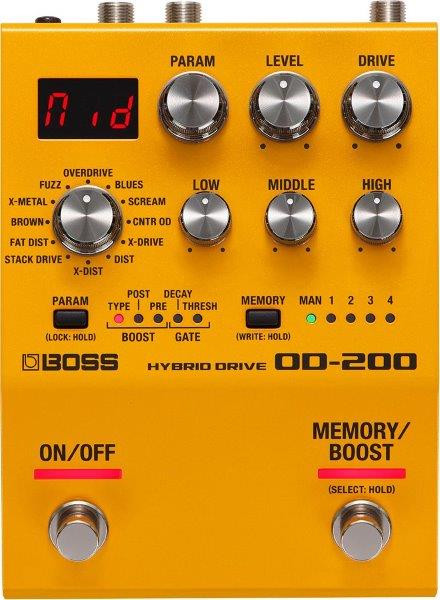

Product Overview
- Advanced hybrid design with analog and digital circuitry provides a huge range of drive tones from classic to modern
- Twelve primary drive modes plus 15 boost types with independent pre/post gain controls
- Selectable series or parallel boost structures for unlimited gain shaping
- Advanced gate section for eliminating noise and tightening high-gain tones
- Class-leading sound quality with 32-bit AD/DA, 32-bit floating point processing, and 96 kHz sampling rate
- Access 128 user setups from the panel or MIDI program change
- Recall consecutive memories plus real-time panel setting via footswitch or dedicated panel button
- Panel Lock function disables controls to prevent unwanted changes
- Customizable multi-function footswitches for bypass, boost, memory selection, and more
- Support for expanded control via external footswitches, an expression pedal, or MIDI
- Full MIDI I/O provided with mini TRS jacks (BMIDI-5-35 adaptor cable available separately)
- Micro USB jack for firmware updates
- Runs on PSA-series AC adaptor or three AA-size batteries
- Specifications
- Sampling Frequency
- 96 kHz
- AD/DA Conversion
- 32 bits
- Processing
- 32-bit floating point
- Drive Circuit
- Analog + Digital
- Modes
- 12 modes
OVERDRIVE, BLUES, SCREAM, CNTR OD, X-DRIVE, DIST, X-DIST, STACK DRIVE, FAT DIST, BROWN, X-METAL, FUZZ - Memory
- 127 + Manual
- Nominal Input Level
- INPUT: -10 dBu
- Maximum Input Level
- INPUT: +7 dBu
- Input Impedance
- INPUT: 1 M ohm
- Nominal Output Level
- OUTPUT: -10 dBu
- Maximum Output Level
- OUTPUT: +7 dBu (Load Impedance: 220 k ohms or greater)
- Output Impedance
- OUTPUT: 1 k ohms
- Recommended Load Impedance
- OUTPUT: 10 k ohms or greater
- Bypass
- Buffered bypass
- Controls
- ON/OFF switch, MEMORY/BOOST switch
MODE knob, DRIVE knob, LEVEL knob, PARAM knob, LOW knob, MIDDLE knob, HIGH knob
PARAM button, MEMORY button - Display
- 7 segments, 3 characters (LED)
- Indicator
- PARAM indicator, MEMORY (MAN, 1--4) indicators
- Connectors
- INPUT jack, OUTPUT jack: 1/4-inch phone type
CTL 1, 2/EXP jack: 1/4-inch TRS phone type
MIDI (IN, OUT) jacks: Stereo miniature phone type
DC IN jack
USB port: USB micro B-type (program update only) - Power Supply
- Alkaline battery (AA, LR6) x 3, AC adaptor (sold separately)
- Current Draw
- 220 mA
- Expected Battery Life Under Continuous Use
- Alkaline: Approx. 6 Hours
* These figures will vary depending on the actual conditions of use. - Accessories
- Owner's Manual
Leaflet "USING THE UNIT SAFELY"
Alkaline battery (AA, LR6) x 3
Rubber foot x 4 - Options (sold separately)
- AC adaptor: PSA-S series
Footswitch: FS-5U
Dual footswitch: FS-6, FS-7
Expression pedal: FV-500H, FV-500L, EV-30, Roland EV-5
MIDI/TRS connecting cable: BMIDI-5-35, BMIDI-1-35, BMIDI-2-35, BCC-1-3535, BCC-2-3535 - Size and Weight
- Width
- 101 mm
4 inches - Depth
- 138 mm
5-7/16 inches - Height
- 63 mm
2-1/2 inches - Height (including rubber foot)
- 65 mm
2-9/16 inches - Weight
- 600 g
1 lb 6 oz - Weight (including battery)
- 670 g
1 lb 8 oz - * 0 dBu = 0.775 Vrms
- *The specifications are subject to change without notice.
