Product Overview
- Next-generation BOSS compact pedal with innovative Multi-Dimensional Processing, realized with proprietary technology and custom DSP
- Impressive, harmonically rich sounds that compliment and enhance your straight guitar sound
- Works well with both clean and distorted guitar tones, and also bass guitar
- Ultra-responsive to volume changes and playing dynamics
- Three different sound modes; wide range of tonal adjustment with simple controls
- Mono or stereo output
- BOSS five-year warranty
- Specifications
- Nominal Input Level
- -20 dBu
- Input Impedance
- 1 M ohm
- Nominal Output Level
- -20 dBu
- Output Impedance
- 1 k ohm
- Recommended Load Impedance
- 10 k ohms or greater

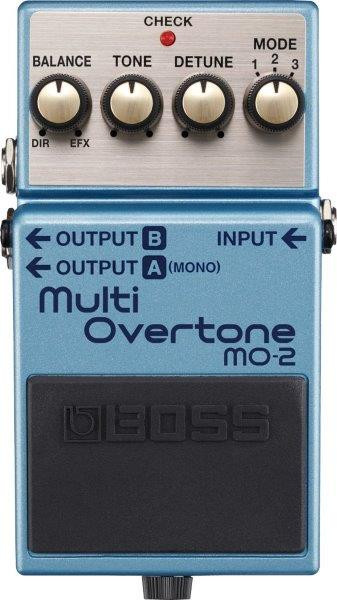

- Controls
- Pedal switch
BALANCE knob
TONE knob
DETUNE knob
MODE knob - Indicator
- CHECK indicator (Serves also as battery check indicator)
- Connectors
- INPUT jack
OUTPUT-A (MONO) jack
OUTPUT-B jack
AC adaptor jack (DC 9 V) - Power Supply
- Alkaline battery (9V, 6LR61)
AC adaptor (sold separately) - Current Draw
- 60 mA
- Expected battery life under continuous use
- Alkaline: Approx. 3 hours
*These figures will vary depending on the actual conditions of use. - Accessories
- Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTE," and "Information")
Alkaline battery (9V, 6LR61) - Option (sold separately)
- AC adaptor (PSA series)
- Size and Weight
- Width
- 73 mm
2-7/8 inches - Depth
- 129 mm
5-1/8 inches - Height
- 59 mm
2-3/8 inches - Weight (including battery)
- 415 g
15 oz - * 0 dBu = 0.775 Vrms
- *The specifications are subject to change without notice.
