Product Overview

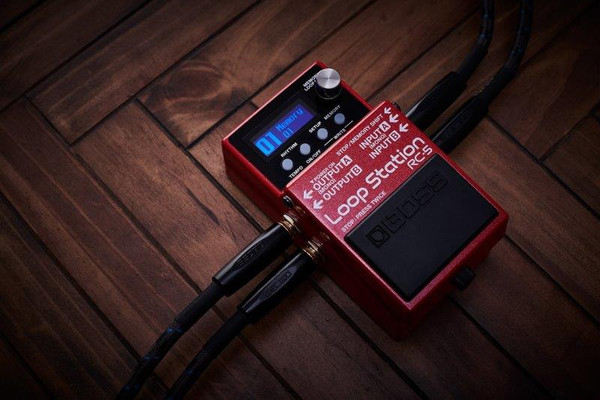

Step up to the RC-5 and prime your pedalboard with maximum looping range. Capture sound with premium 32-bit quality, navigate parameters and monitor loop status with the backlit LCD, and tap into expanded operation via the control jack and TRS MIDI I/O. And with over 50 rhythms, 13 hours of stereo recording, 99 phrase memories, and more, the compact RC-5 puts a deep well of musical power at your feet.
- Specifications
- Sampling Frequency
- 44.1 kHz
- AD/DA Conversion
- 32 bits
- Processing
- 32-bit floating point
- Recording/Playback
- Number of Track: 1
Data Format: WAV (44.1 kHz, 32-bit float, stereo)
Maximum Recording Time: Approx. 1.5 hours (1 track), Approx.13 hours (total of All memories) - Rhythm Type
- 57 Patterns x 2 Variations
- Rhythm Kit
- 7 types
- Effect
- Reverb (only for rhythm part)
- Memory
- 99
- Nominal Input Level
- INPUT A/MONO, B: -20 dBu
- Input Impedance
- INPUT A/MONO, B: 1 M ohm
- Nominal Output Level
- OUTPUT A/MONO, B:-20 dBu
- Output Impedance
- OUTPUT A/MONO, B: 1 k ohm
- Recommended Load Impedance
- OUTPUT A/MONO, B: 10 k ohms or greater
- Bypass
- Buffered bypass
- Controls
- MEMORY/LOOP LEVEL knob, MEMORY button, SETUP button, RHYTHM ON/OFF button, RHYTHM TEMPO button, Pedal switch
- Display
- Graphic LCD (96 x 32 dots, RGB backlit LCD)
- Connectors
- INPUT A/MONO, B jacks: 1/4-inch phone type
OUTPUT A/MONO, B jacks: 1/4-inch phone type
STOP/MEMORY jack: 1/4-inch TRS phone type
USB port: USB B type
MIDI (IN, OUT) jacks: stereo miniature type
DC IN jack - Power Supply
- Alkaline battery (9 V, 6LR61 or 6LF22)
AC adaptor (PSA series: sold separately) - Current Draw
- 170 mA
- Expected battery life under continuous use
- Alkaline: Approx. 2 hours
*These figures will vary depending on the actual conditions of use. - Accessories
- Owner's manual
Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")
Alkaline battery (9 V, 6LR61 or 6LF22) - Options (sold separately)
- AC adaptor: PSA-S series
Footswitch: FS-5U
Dual Footswitch: FS-6, FS-7
Expression Pedal: FV-500H, FV-500L, EV-30, Roland EV-5
TRS/MIDI connecting cable: BMIDI-5-35, BMIDI-1-35, BMIDI-2-35, BCC-1-3535, BCC-2-3535 - Size and Weight
- Width
- 73 mm
2-7/8 inches - Depth
- 129 mm
5-1/8 inches - Height
- 56 mm
2-1/4 inches - Weight (including battery)
- 450 g
1 lb - * 0 dBu = 0.775 Vrms
- *The specifications are subject to change without notice.
