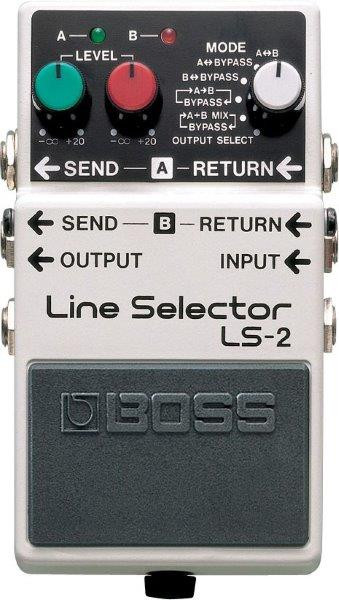

Product Overview
- Compact line selection pedal for connecting and switching between multiple amplifiers and effects devices
- Provides two line loops with Level control and six looping modes
- Can supply power to several BOSS compact pedals when used with an AC adaptor
- The ideal power supply and master switching unit for multiple effects setups
- BOSS 5-year warranty
- Nominal Input Level
- -20 dBu
- Input Impedance
- 1 M ohm
- Nominal Output Level
- -20 dBu
- Output Impedance
- 1 k ohms
- Recommended Load Impedance
- 10 k ohms or greater
- Bypass
- Buffered bypass
- Controls
- MODE selector switch
LEVEL knobs A/B
Pedal switch - Indicator
- Line indicator A/B (Used for indication of check battery)
- Connectors
- INPUT jack: 1/4-inch phone type
SEND jacks A/B: 1/4-inch phone type
RETURN jacks A/B: 1/4-inch phone type
OUTPUT jack: 1/4-inch phone type
DC IN/OUT jack - Power Supply
- Carbon-zinc battery (9 V, 6F22) or Alkaline battery (9 V, 6LR61)
AC adaptor (PSA series: sold separately) - Current Draw
- 30 mA
- Expected battery life under continuous use
- Carbon: Approx. 14.5 hours
Alkaline: Approx. 29.5 hours
* These figures will vary depending on the actual conditions of use. - Accessories
- Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")
Carbon-zinc battery (9 V, 6F22) - Options (sold separately)
- AC adaptor: PSA series
Parallel DC Cord: PCS-20A - Size and Weight
- Width
- 73 mm
2-7/8 inches - Depth
- 129 mm
5-1/8 inches - Height
- 59 mm
2-3/8 inches - Weight (including battery)
- 430 g
1 lb - * 0 dBu = 0.775 Vrms
- *The specifications are subject to change without notice.
