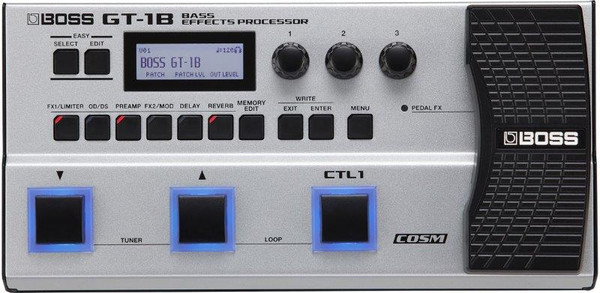

Product Overview
- Premium BOSS sound engine specially tuned for bass
- Pro-level amps and effects in a light, compact floor unit
- Essential tools on board for optimizing your core bass tone
- Includes advanced MDP effects for maximum musical expression
- Modern design with no hard edges enables safe transport in an instrument bag
- Easy Select and Easy Edit functions for quickly choosing and tweaking patches
- Four AA batteries provide approximately seven hours of mobile playing time
- Onboard control switch and expression pedal; footswitch/expression pedal jack and USB
- Download pro patches and editor software for free at BOSS Tone Central
- Specifications
- Sampling Frequency
- 44.1 kHz
- AD Conversion
- 24 bits + AF method
* AF method (Adaptive Focus method) is a proprietary method from Roland & BOSS that vastly improves the signal-to-noise (SN) ratio of the AD and DA converters. - DA Conversion
- 24 bits
- Effects
- 90 types
- Patches
- 99 (User) + 99 (Preset)
- Phrase Loop
- 32 sec.
- Nominal Input Level
- INPUT: -10 dBu, AUX IN: -20 dBu
- Maximum Input Level
- INPUT: +7 dBu, AUX IN: 0 dBu
- Input Impedance
- INPUT: 1 M ohm, AUX IN: 27 k ohms
- Nominal Output Level
- OUTPUT (L/MONO, R): -10 dBu, PHONES: -10 dBu
- Output Impedance
- OUTPUT (L/MONO, R): 1 k ohm, PHONES: 44 ohms
- Recommended Load Impedance
- OUTPUT (L/MONO, R): 10 k ohms or greater, PHONES: 44 ohms or greater
- Controls
- DOWN switch, UP switch CTL1 switch
EASY SELECT button, EASY EDIT button, FX1/LIMITER button, OD/DS button, PREAMP button, FX2/MOD button, DELAY button, REVERB button, MEMORY EDIT button, EXIT button, ENTER button, MENU button
1 knob, 2 knob, 3 knob
Expression pedal - Display
- Graphic LCD (132 x 32 dots, backlit LCD)
- Connectors
- INPUT jack, OUTPUT (L/MONO, R) jacks: 1/4-inch phone type
CTL2, 3/EXP2 jack: 1/4-inch TRS phone type
AUX IN jack: Stereo miniature phone type
PHONES jack: Stereo miniature phone type
USB COMPUTER port: USB type B
DC IN jack - Power Supply
- Alkaline battery (AA, LR6) x 4, AC adaptor (sold separately)
- Current Draw
- 200 mA
- Expected battery life under continuous use
- Alkaline: Approx. 7 hours
* These figures will vary depending on the actual conditions of use. - Accessories
- Owner's manual
Leaflet "USING THE UNIT SAFELY"
Alkaline battery (AA, LR6) x 4 - Options (sold separately)
- AC adaptor: PSA series
Footswitch: FS-5U, FS-5L, FS-6, FS-7
Expression Pedal: FV-500L, FV-500H, EV-30, Roland EV-5 - Size and Weight
- Width
- 305 mm
12-1/16 inches - Depth
- 152 mm
6 inches - Height
- 56 mm
2-1/4 inches - Maximum height
- 74 mm
2-15/16 inches - Weight (including battery)
- 1.3 kg
2 lbs 14 oz - * 0 dBu = 0.775 Vrms
